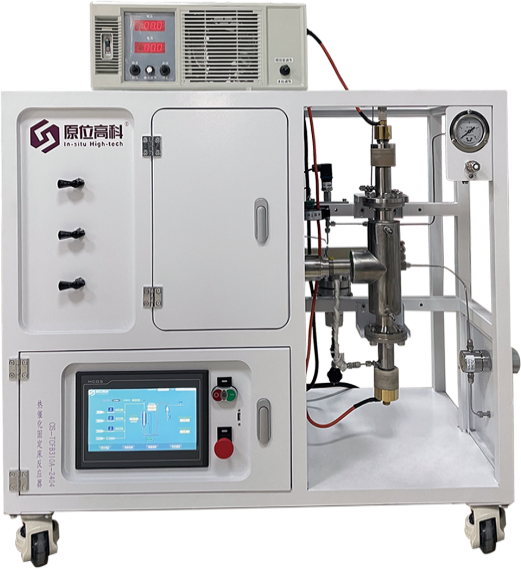

Desktop micro fixed bed

Product introduction

The micro fixed bed reactor is used in the laboratory work surface, which has the characteristics of small size, compact structure, modular design and easy assembly and improvement. According to the reaction system, the number of reaction channels, gas and liquid channels, and the type of separation device can be customized to perfectly meet the actual needs of customers

Modular: Small modular desktop, free assembly according to the experimental system

Accuracy: pressure ± 0.25%FS, flow ± 1%FS, temperature difference in constant temperature zone ±1 ° C, temperature control accuracy ±1 ° C

Applicability: It can realize multi-gas phase and gas-liquid two-phase

Convenience: Temperature controlled by PID can be constant output to examine the reaction heat change. Data acquisition on the touch screen, the operation interface is simple. Automatic product sampling analysis, to achieve all-weather continuous operation

Product advantage

modularization
Small modular desktop, free assembly, expansion and improvement according to the experimental system;
accuracy
Pressure ± 0.25% F.S, flow rate ± 1% F.S, constant temperature zone temperature difference ± 1 ℃, each The temperature difference between channels is ± 1 ℃, and the temperature control accuracy is ± 0.1 ℃;
Applicability
It can achieve multi gas phase, gas-liquid two-phase, and gas-liquid-solid three-phase reactions, and can be combined with GC/MS/IR to achieve online detection;
convenience
The temperature is controlled by PID to ensure stable reaction temperature and can output continuously to observe changes in reaction heat. The data collection and control are integrated on the touch screen, with a simple and friendly operating interface, making it convenient and fast to use. Can achieve automatic product sampling and analysis, and achieve continuous operation 24/7 Transfer without manual intervention;
safety
Electrical safety interlocking, adopting a safety design that combines software and hardware, with overpressure and overheating alarms, and automatically stopping work if it is not handled when it is outdated; Misoperation protection; Power outage, gas outage handling, etc;

Product parameter

Indicators	Parameters
-	1-4
Maximum operating temperature (°C)	800 or determined according to requirements and material
Maximum operating pressure (MPa)	10 or according to the requirements and material to determine
Feed composition	Single gas phase, multi-component gas phase, gas-liquid two-phase, gas-liquid-solid three-phase
Feed pretreatment method	Filtration, premixing, preheating, vaporization and remixing, vaporization after melting, etc.
Gas/liquid feeding mode	Mass flow meter/bubble generator, syringe pump, plunger pump
Gas feed flow number	2-4
Liquid feed flow number	1-2
feed distribution error	1%
Catalyst loading (mL)	0.1-5
Inner diameter of reaction tube (mm)	10 or as customized
Form height of catalytic bed (mm)	Cylinder/10-200
Catalyst form	Powder, granule, molding and overall structure
Material of reaction tube	Quartz, 316L, 310S, Hastelloy, GH high temperature alloy or according to customer requirements
Temperature control mode	PID
Heating mode	Joule heating or ordinary electric heating can be single or multiple
Split Mode	Gas-solid, gas-liquid separation
Separation device	Cyclone separator, temperature controllable condenser
-	Off-line sampling, on-line GC/MS/IR sampling
-	Digital display instrument control/touch screen control/computer software control
Power supply	20A,AC220V,50Hz grounding resistance<4ω<>
Exhaust air	Customized according to customer requirements
Dimensions (m)	0.3x 0.45x0.8
Security	Electrical safety chain, the use of hardware and software combination of safety design, overpressure, overtemperature alarm, outdated untreated automatic stop work, misoperation protection. Power cut, gas cut, etc.
