Home ProductsJoule heating device series

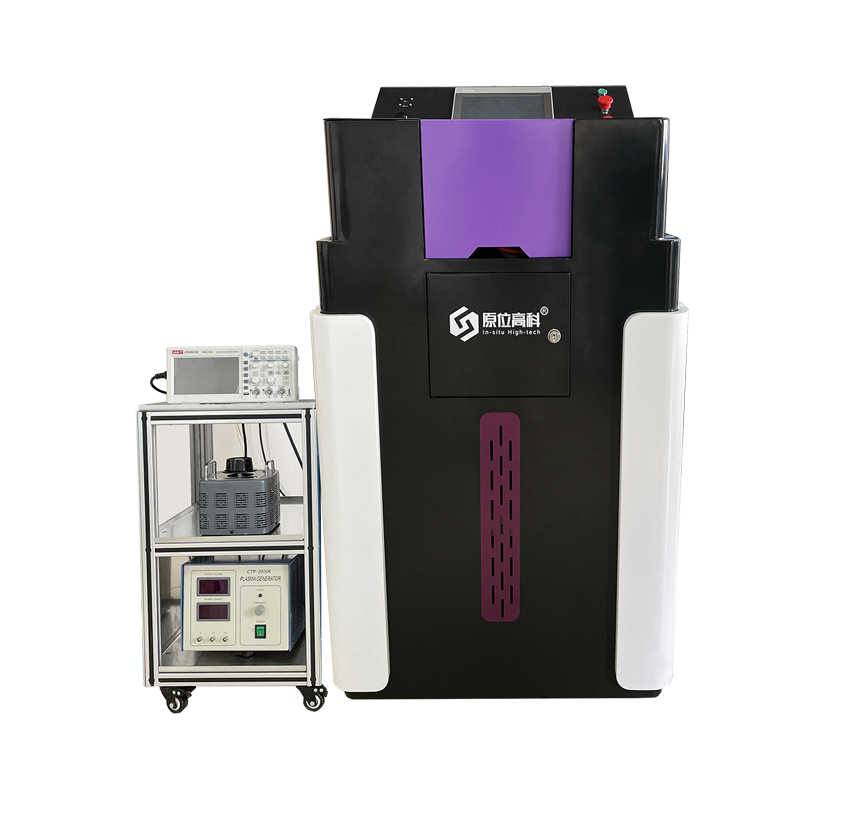

Discharge plasma Joule heating device

Product introduction

The discharge plasma Joule heating device is an advanced rapid sintering equipment. Adopting a double-layer square cavity with water cooling function; The interior of the reaction chamber can provide an experimental environment for vacuum, rapid heating, and discharge effects. The use of a fully digital plasma experimental power supply can better control the electric field parameters during the sintering process.

Product parameters and characteristics

Parameter type:

The width and depth of the machine are about 710mm*610mm*650mm

Host Weight: 125 kg

Sheet metal Q235B

Vacuum chamber material SUS304/ Hastelloy C276, etc

Power supply specifications Three-phase five-wire system 380V± 10% 50Hz

Dc power output specifications 40V 500A

Plasma power output specification 0-30KV 0-500W

Frequency range 5KHz-20KHz

The center frequency is about 10KHz

The discharge interval is 8mm
