Outfield-assisted Joule heating/self-propagating material preparation platform

Outfield-assisted Joule heating/self-propagating material preparation platform

Product introduction

The outfield-assisted Joule heating/self-propagating material preparation platform  can provide thermal field, power field, magnetic field, quenching and atmosphere auxiliary environment for the material heat treatment process. The auxiliary control of synthetic materials can be realized by controlling the external field strength. The heat treatment modes include joule heating and combustion synthesis. The whole machine modular design, the degree of automatic control is high, there are reaction chamber, electric control cabinet system, external magnetic field coil, water cooling mechanism.


Product parameters and characteristics

System compositionReaction chamber, external magnetic field coil, electrical control system, water cooler
Joule heatingTemperature heating range: ≤2500℃
Flash ModeFastest heating rate: ≤500℃/S
Temperature control mode2500℃ insulation time ≤1 minute, insulation temperature error: ±1℃
Temperature measurement method: infrared non-contact, accuracy ±1%FS
Cold vacuum degree: ≤10Pa
Sintering environment: atmosphere, vacuum (automatic control of cleaning, evacuation, and air intake)
Graphite crucible size: 48*20*10mm; volume 2ml
(Different batches and configurations may vary, please refer to the actual product)
Combustion SynthesisHot Explosion ModeWorking method: The Joule heat quickly heats up to the material ignition temperature, and the sample undergoes an overall combustion reaction
Sample properties: solid pressed tablet
Graphite crucible size: 48*20*20mm (with lid) Volume: 7.5ml
Self-propagating modeWorking method: The tungsten wire heats up and ignites the combustion aid, which then spreads and burns out.
Sample properties: solid pressed tablet
Graphite crucible size: 48*20*20mm (without cover) Volume: 7.5ml
Quenching functionAfter sintering in various modes, the graphite crucible can quickly and automatically fall into the water or oil in the collection basin for high-temperature quenching.
Magnetic field test parametersMagnetic field strength: The central magnetic field strength is better than 12.5Gs (1000A/M)
Electric field test parametersElectric field strength: ≤55V/mm (cold theoretical value)
Operation control systemWith PLC as the core control, the whole system automatically executes and feedbacks the process flow according to the set parameters. The control system is simple to operate, stable and reliable
Standard configuration is optional; if special functions are required, it can be deeply customized

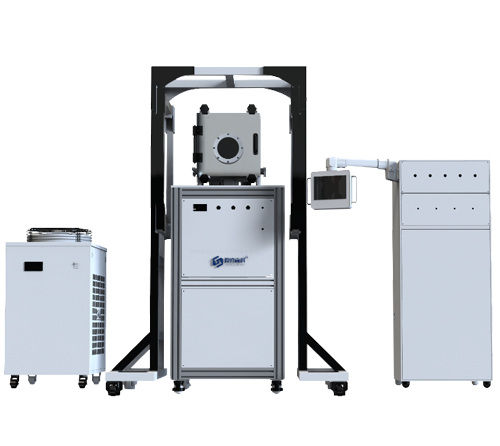

Installation example

Outfield-assisted Joule heating/self-propagating material preparation platform

Outfield-assisted Joule heating/self-propagating material preparation platform

Contact us

Bulk procurement, customized needs, technical consultation, etc., please leave your needs and contact information, we will get in touch with you as soon as possible

*
*
*
